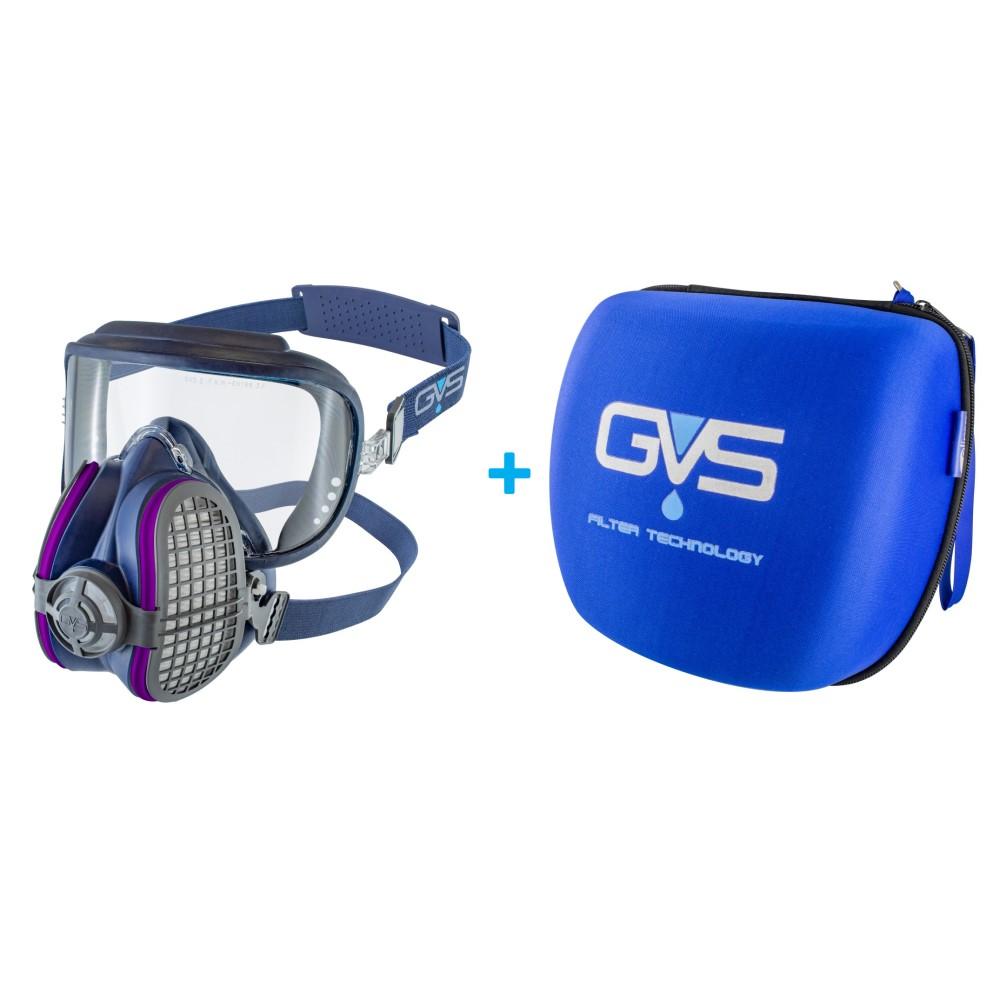

respirator with goggles Half Face Mask Respirator w/ Attached Goggles & Filters: GVS IntegraMade in USA. Elastomeric Eye & Respiratory Protection With Filtration Options for P100, OV, OV AG, Multi Gas, and or Nuisance Odor Replacement Filters Available Here Compact, lightweight and flexible design which adapts and fits perfectly to the face and offers a unique and innovative combined protection, reducing risks of non compatibility, non conformity and mist build up. Large central non return exhalation valve which reduces the breathing

Made in USA.

Elastomeric Eye & Respiratory Protection

With Filtration Options for P100, OV, OV/AG, Multi-Gas, and/or Nuisance Odor

Replacement Filters Available Here

Compact, lightweight and flexible design which adapts and fits perfectly to the face and offers a unique and innovative combined protection, reducing risks of non-compatibility, non-conformity and mist build up. Large central non-return exhalation valve which reduces the breathing resistance for the user and keeps moisture build-up inside the mask to a minimum. Lightweight, non-slip strap that is easily adjusted in 4 positions for improved comfort and to allow safe use even in high humidity or wet conditions. Elipse® Integra come in 2 sizes.

Soft-Light-Resistant Respirators

The Elipse range of face masks by GVS, represent a major advance in mask design. As one of the lightest on the market in its class, its ergonomic shape provides maximum visibility to wearers while providing Z87+ eye protection. The ability to replace filters extends the masks overall working life. These compact profile masks are made of hypo-allergenic materials and the replaceable filters offer a minimum efficiency of 99.97% or higher at 0.3 microns particle size.

Anatomical Design

GVS's range of extremely lightweight masks fit perfectly to the face, without hindering the user. The compact profile of the mask and filters allow all ELIPSE® Integra range masks to create a perfect seal to the face and ensure the greatest possible field of vision during use, without interfering with other personal protective equipment such as eye, ear and face protection.

Comfortable and Hypo-Allergenic

Unique comfort, thanks to the flexible and soft characteristics of the TPE (Thermo Plastic Elastomer), used in the ELIPSE® masks, making them very comfortable even when worn for an extended period of time. The materials that make up the mask are odorless and hypoallergenic, latex and silicone free and conform to ISO 10993-10:200.

Patented HESPA™ P100 Filters

The Encapsulation is a patented technology owned by the GVS Group that enable to produce a compact and light filter capturing the pleated media with a soft TPE ring. High Efficiency Synthetic Particulate Air-filter is a technology that enables the patented "encapsulation" production process. The 7 layers combined filter media is using exclusively mechanical filtration technology, giving the filter guarantee that the efficiency stay above 99,97% during the usage. Those filters are also water-repellent thanks to the nature of those media.

Protection Against Nano Particulates

GVS Ellipse P100 particulate filters protect against nano particulates, and have been tested down to 40 nanometers (0.04 microns) still giving an efficiency of >99.97%.

Compliance

GVS Elipse Respirator Certifications

ANSI Z87+ Approved

NIOSH Approval numbers:

1. P100 TC-84A-8119.
2. P100 with Nuisance Odor TC-84A-8120
3. P100 with OV TC-84A-8114
4. P100 with OV/AG TC-84A-8115

SEE ALL GVS RESPIRATORS, ACCESSORIES, AND PARTS HERE.

Protection properties

The lens is designed in polycarbonate and can withstand impacts according to ANSI Z87+. The coating applied give anti fogging properties and exceeds the standard anti-scratch seen on the market for a longer durability.

Effective against dust and fumes containing substances such as micro-organisms, marble, gypsum, titanium oxide, soapstone, rock wool, wood, detergents, textile fibers, spices, salt, feed, etc.

Protects against dust that can cause lung disease. In particular, protects against coal, silica, cotton, iron ore, graphite, kaolin, zinc, aluminum dusts. Protects against harmful dusts such as asbestos, bauxite, coal, silica, iron, and against toxic dusts such as manganese, lead and chromium.

Pleated, interchangeable P100 filters have a minimum efficiency of 99,97% at 0,3 microns and a breathing resistance of 3 mbar at a flow rate of 47,5 l/min for each filter.

The gas cartridges contain specific activated carbon granules with optimized characteristics such as pore size, grain size, activity level, density etc, which provide a maximum adsorption performance and a really low breathing resistance. The respirator is supplied with two specific activated carbon filtering elements for the protection against a range of gases, vapors, dust and mists. Once these are finished, they can be replaced with replacement filters. These offer versatile protection against dust and mists up to 50 TLV.

Applications

Mining, steel mills, foundries, mechanical, pharmaceutical, cement, glass, ceramics, chemicals, textile industries, shipyards, battery manufacturing, waste management, construction, heavy metals (lead, nickel, chromium), rail industry.

Type of filter / class

HESPA™ (High Efficiency Synthetic Particulate Air Filter) + P100 R D > 99.97% (minimum efficiency). Available with activated carbon pad filter, P100 Nuisance Odor (R D), for removal of small concentration of organic vapors/odors and a higher comfort.

Materials

The materials used for masks and filters are hypo-allergenic, Odorless, FDA compatible, and non latex or silicone.

Filters: - Activated carbon with ABS shell. Mechanical type HESPA™ Synthetic media
with TPE over mold / encapsulation (for combined filters with P100 protection).

Batch Reports

Full traceability of each batch against each material used.

On line testing

100% of filters are efficiency tested with NaCl to ensure the highest performance and quality.

Storage life

5 years for mask and P100 filters.

3 years for mask and all other filters.

Elipse Integra Dust Mask Specifications

Material:

Mask: Medical grade TPE (Silicon free).

Filters: Mechanical type HESPA™ Synthetic media with TPE over molded / encapsulated. Filters are water repellant and re-usable.

Lifetime:

Filters can be used until fully clogged and / or the wearer feels uncomfortable or until the activated carbon is exhausted and the wearer can smell / taste the contaminant. The lifetime will depend on the concentration in the workplace and the activity level. The filtration level will stay constant all along the usage. All masks are supplied with an aluminum zip foil bag for storage to maximize the life expectancy of the activated carbon. The P100 element is designed for a longer lifetime with up to 5 times the amount of material usually put in other ranges.

Ellipse

Size Guide

Video

GVS Elipse Integra Training Video
