Description
hdzero goggles europe Crosshair®Xtreme Pair for HDZero Goggles – Video Aerial SystemsThe HDZero system works by using 2 diversity systems, one on the left side and the other on the right and then combining the best signals of both of those into one HD signal. So why not use this diversity to your advantage and create spatial diversity with a set of high performance Crosshair Xtremes? This Crosshair Xtreme Antenna pair is easily attached to the HDZero goggle's "rail system" using the included mounts, just slide them right on. The
The HDZero system works by using 2 diversity systems, one on the left side and the other on the right and then combining the best signals of both of those into one HD signal. So why not use this diversity to your advantage and create spatial diversity with a set of high performance Crosshair® Xtremes?

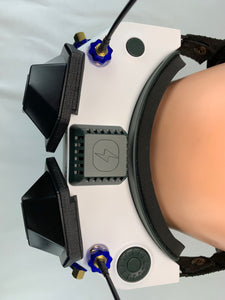

This Crosshair® Xtreme Antenna pair is easily attached to the HDZero goggle's "rail system" using the included mounts, just slide them right on. The Crosshair® Xtreme gives both long range and object penetration to the front of the pilot, right where you need it. The Crosshair® Xtreme's patented technology creates a smooth rotation to the video signal minimizing the break up your receiver "sees" with other antennas, resulting in a clear solid signal. For maximum clarity, install the Crosshair® Xtremes on your goggles and enjoy your flight.
US Pat. No.: 11,442130
Combine this with a set of Victory Long range antennas on the top ports of your goggles for a high performance set up for both long-range and sport flying.
Specifications:
-
Polarization: RHCP or LHCP
- Gain: 10.25dbic
- Axial ratio: 0.99 (as measured)
- Bandwidth: 5300MHz-6400MHz
- Beamwidth: 120 degrees
- -3db beamwidth: +/-30 degrees
- Mounting Solution: Black Included (other colors optional)
- Connector: SMA Male 90
3D Files:
We don't offer the mount in your favorite color? Do you have your own 3d printer? Download the .stl file for the rail mounts here: Mounts
